B-Sense Glucose Display — Your glucose at a glance.

A dedicated glucose display for Nightscout and B-Sense Cloud.

Go from working xDrip+ to the first live device reading in four clear steps.

Start setup Read documentation

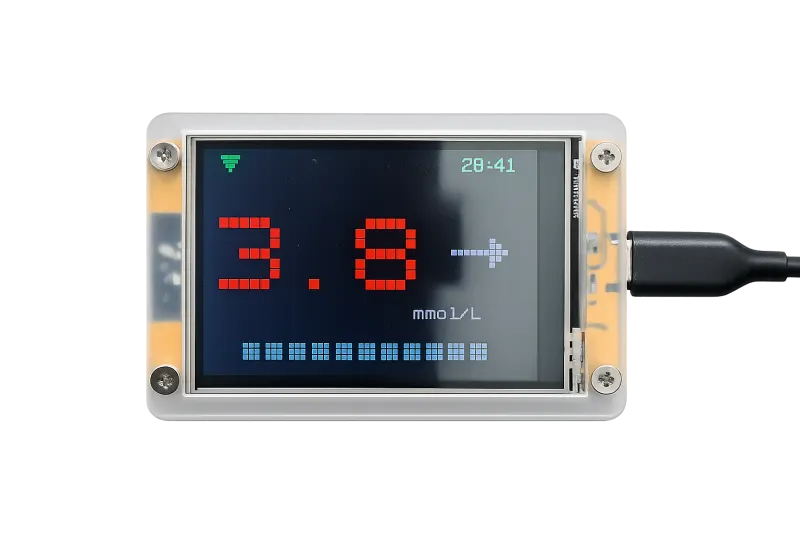

B-Sense Glucose Display screen

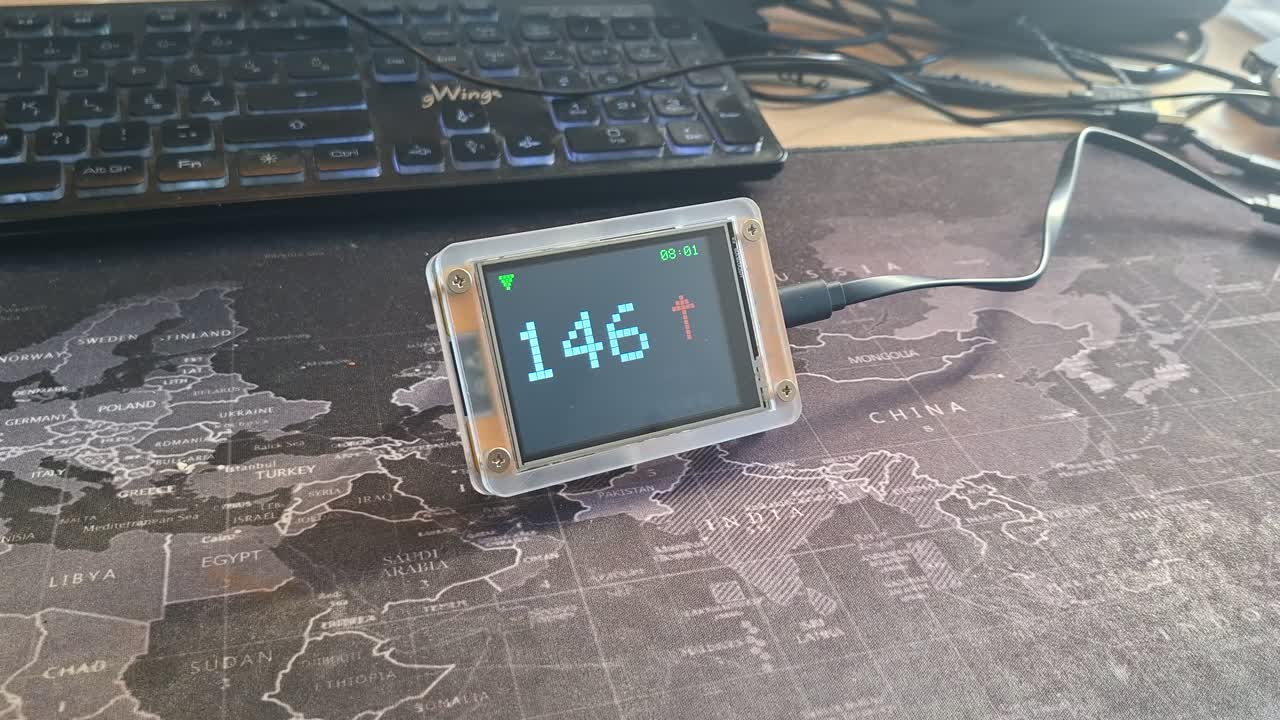

B-Sense live glucose display
Live glucose screen

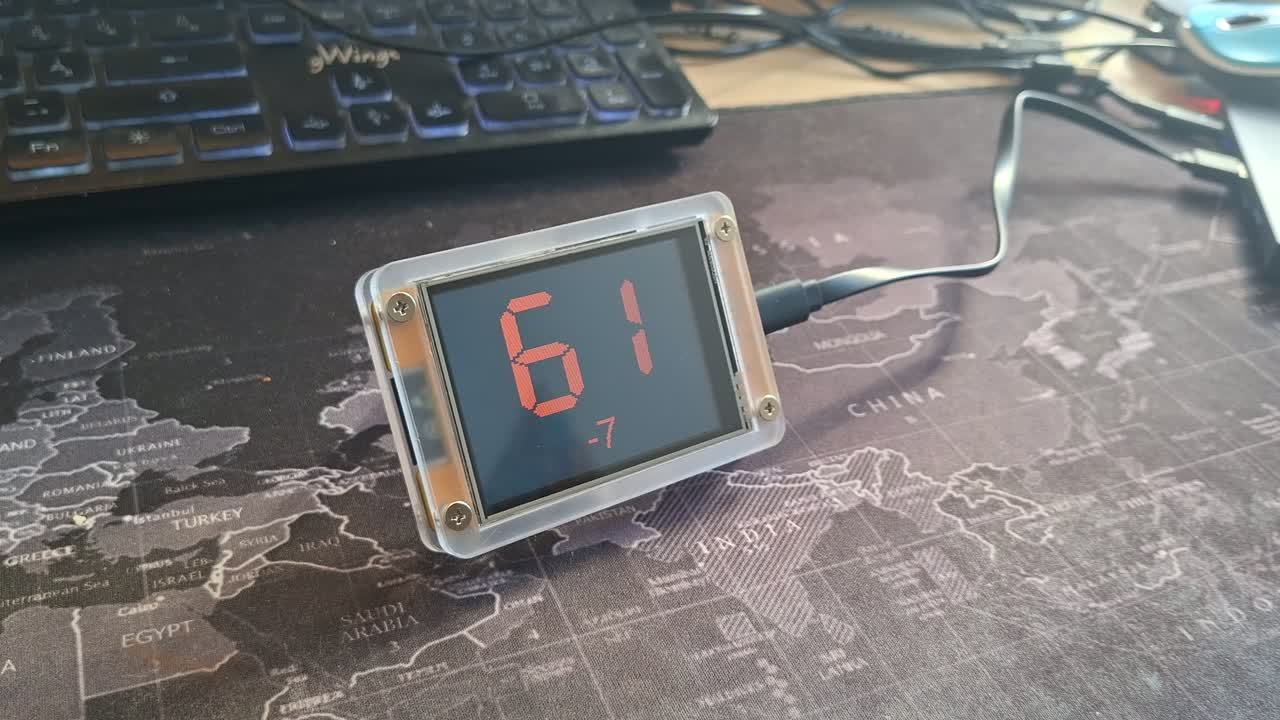

B-Sense low alert screen
Low alert view

Start from your current setup

Choose the shortest path based on what is already ready.

xDrip+ + board ready xDrip+ ready, need board Start from zero

How setup works

First get stable glucose in xDrip+, then confirm the right board, flash the device, and finally connect the same data path on xDrip+ and the device.

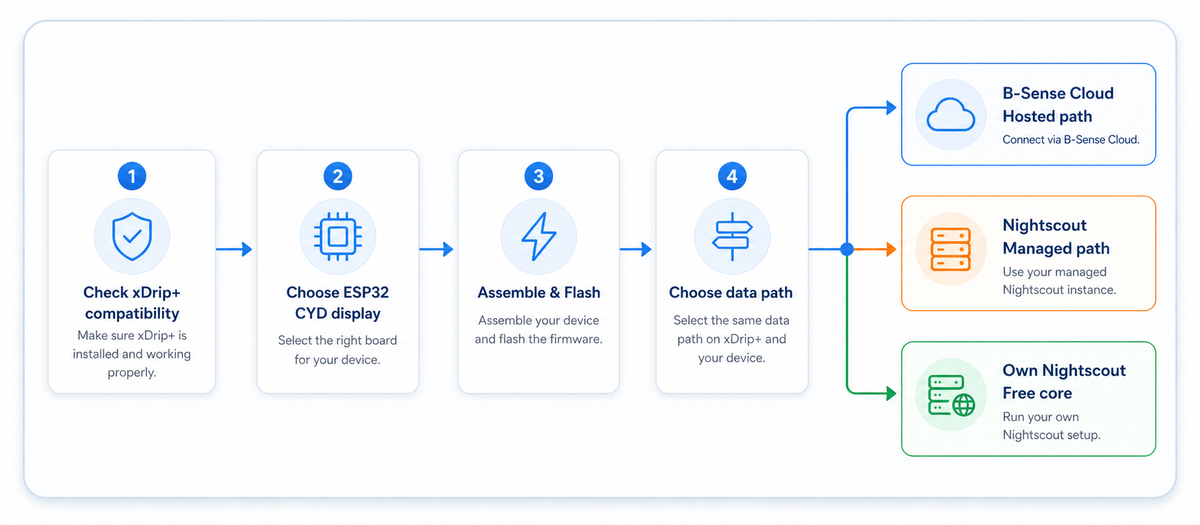

B-Sense setup flow from xDrip and board preparation to flashing and data path connection
Step 1 illustration
Step 1 Time 0-10 min Cost $0

Make sure your phone and CGM can send data to xDrip+. Start with Android or iOS setup, then confirm live readings.

Already using xDrip+? Jump to Step 2. Do not proceed until live updates are stable.
  • No single setup works for every CGM + phone combination.
  • Check official docs, forums, and community groups for your exact model, firmware, and region.
  • Adjust your setup until xDrip+ shows stable live readings.
Go to details below
Step 2 illustration
Step 2 Time 0-10 min Cost $0-8

Buy or confirm the exact board model: ESP32 2.8inch touch ST7789.

Already have the CYD 2.8\" touch (ST7789)? Jump to Step 3.
  • Use the exact touch ST7789 board model.
  • Case or stand is optional.
  • Example seller links and board screenshots are in the detail section below.
Go to details below
Step 3 illustration
Step 3 Time 5-10 min Cost $0

Flash the device, connect it to Wi-Fi, then open Visit Device to finish the base setup. Leave the data-path API settings for Step 4.

Open Web Flasher Go to details below
Step 4 illustration
Step 4 Time ~10 min Cost free / plan

Connect xDrip+ and the device to the same Nightscout or B-Sense Cloud path, then wait for the first reading.

Nightscout users can start on the free path. B-Sense Cloud is the managed option with Pro Features.

See plans and pricing

In the details below, you will first set up xDrip+, then save the same path on the device.

Go to details below

Everything you need, all in one place

Step 1 illustration
Step 1

Confirm your CGM works

Before anything else, your phone must already show stable live glucose in xDrip+.

Do not proceed until your phone receives stable live glucose data.

Exact setup depends on your CGM model, phone, app path, and region. Use the shortest route that gets you to one stable live reading in xDrip+.

Android quick checklist

Download: xDrip release 2025.09.05
Documentation: xDrip GitHub wiki

  1. Install the APK.
  2. Allow Bluetooth and Location permissions.
  3. Disable battery optimization for xDrip+.
  4. Open Settings -> Hardware Data Source and select your CGM.
  5. Wait for glucose value and trend arrow.
  6. Confirm updates continue for at least 5 minutes.

Common paths

  • Dexcom (G6/G7/One): Dexcom Native or Companion Mode.
  • Libre 1/2/3: Direct / Patched / Juggluco. Compatibility reference
  • CareSens Air: enable xDrip+ in the CareSens app (Manage Data & Connections).
  • Eversense: use companion integration.

If no data appears

  • Bluetooth ON.
  • Location ON.
  • CGM app connected (if using companion mode).
  • Restart Bluetooth or restart the phone once.

Support: xDrip GitHub and Nightscout docs.

iOS options

There is no App Store xDrip+ app. Use this route only if you already know you need it:

  1. xDrip4iOS (advanced): github.com/JohanDegraeve/xdripswift (self-build or TestFlight required).

Step 1 complete when

  • Glucose value is visible on xDrip+.
  • Trend arrow is visible.
  • Updates continue normally for at least a few minutes.

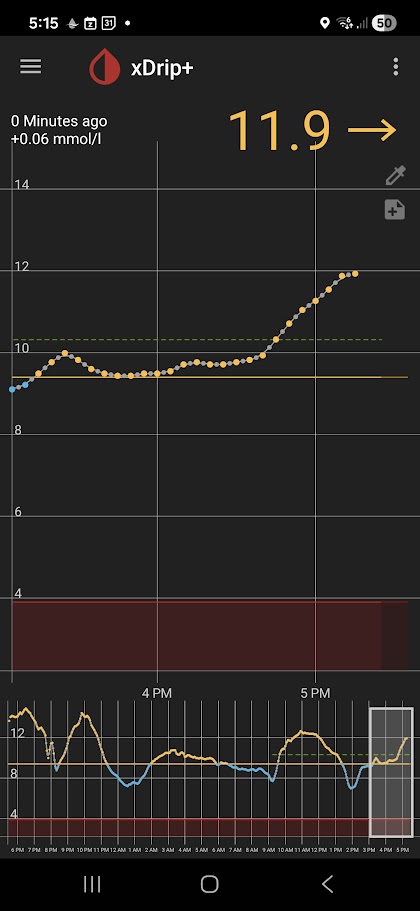

xDrip live screen
xDrip app showing glucose and trend

After this step: you should see stable live glucose on your phone. Then continue to Step 2.

Continue to Step 2 Back to quick cards
Step 2 illustration
Step 2

Choose the ESP32 kit

CYD means "Cheap Yellow Display" (ESP32-2432S028R): a low-cost ESP32 board with a 2.8-inch touch TFT, Wi-Fi/Bluetooth, USB power/programming, and microSD support. It is commonly used for compact, always-on display projects.

  • Order the exact board type: ESP32 2.8inch touch ST7789. The no-touch variant will likely also work, but current development is based on the touch model and future touch functions may be used.
  • Case or stand is optional and can be added later.

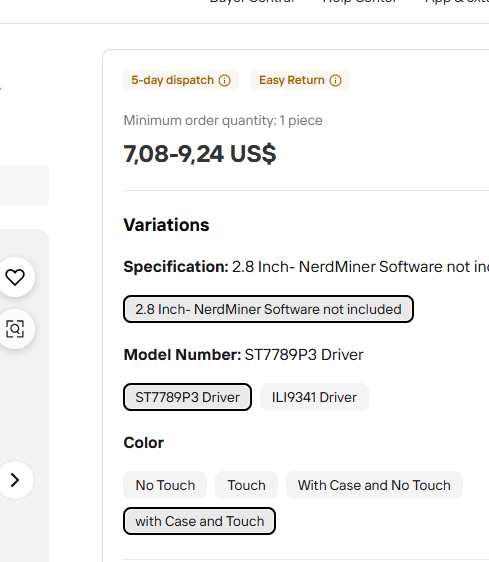

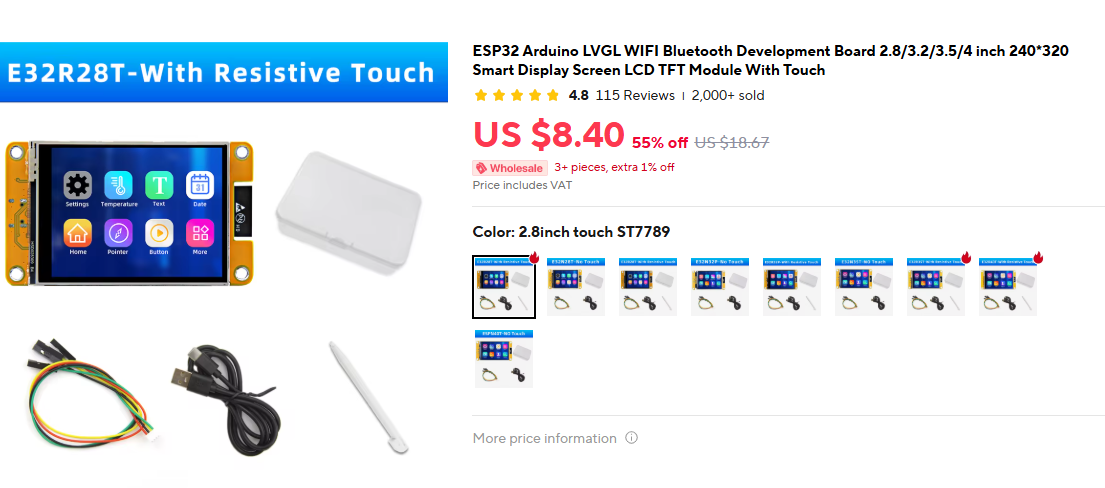

Where to order

After this step: your hardware order is placed (or you confirm you already own the board).

Continue to Step 3
Step 3 illustration
Step 3

Assemble & flash

This step installs the firmware, connects Wi-Fi, and gets the device ready for the data-path setup in Step 4.

  1. Open Web Flasher and click Connect.
  2. Select Install B-Sense ESP32 + ST7789.

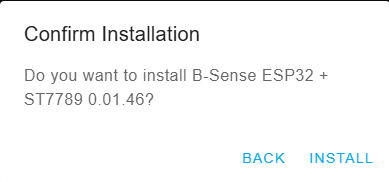

  3. For a first install, keep Erase device enabled. For later updates, keep it off if you want to preserve saved settings.

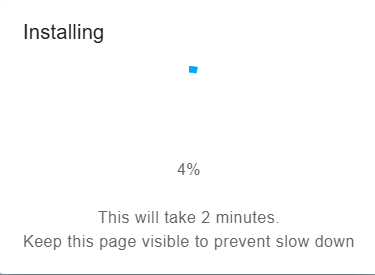

  4. Wait until flashing completes.

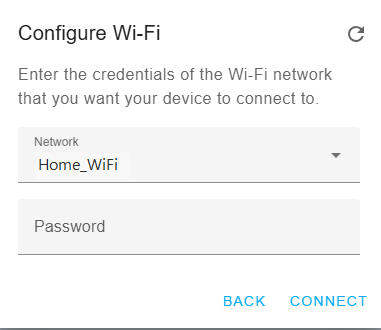

  5. Set Wi-Fi when prompted.

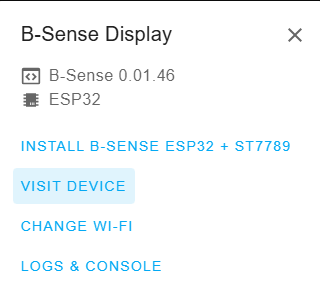

  6. Open Visit Device and set the time zone. Leave the data-path API settings for Step 4.

Flasher screenshots

Click any screenshot to open full-size view. Use arrows to navigate the complete install flow.

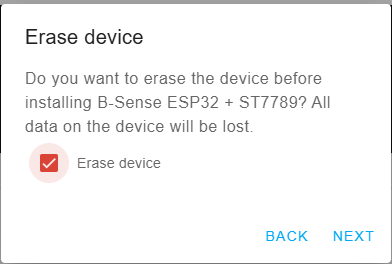

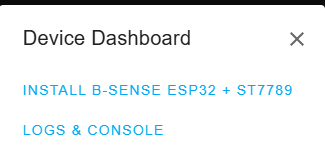

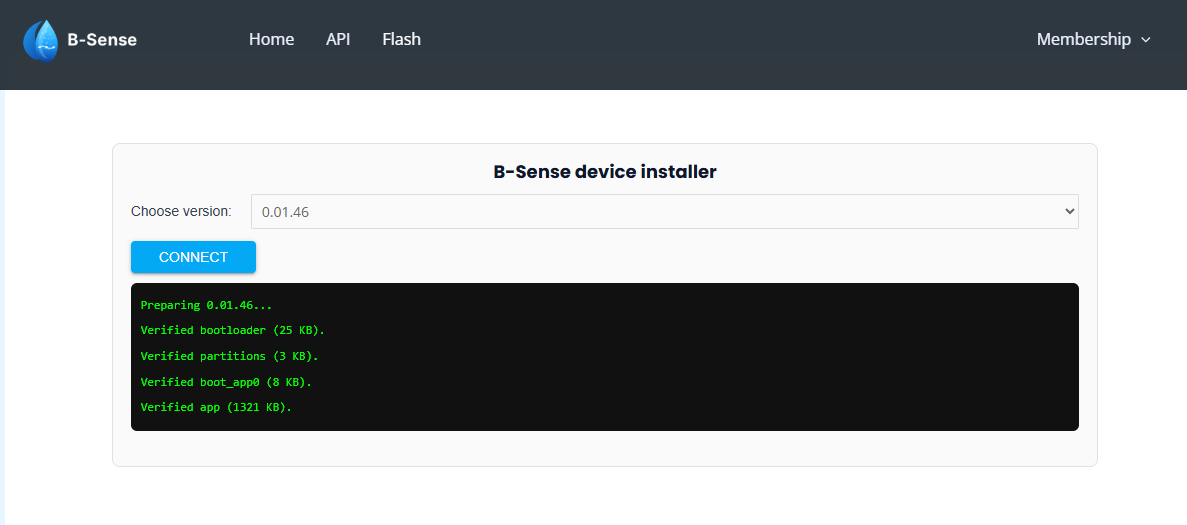

B-Sense flasher page with version selector and Connect button Choose version and click Connect Device dashboard showing Install B-Sense ESP32 plus ST7789 option Select Install B-Sense ESP32 + ST7789 Erase device confirmation dialog before install Erase device option

After this step: B-Sense should be running on your Wi-Fi with current firmware.

Continue to Step 4
Step 4 illustration
Step 4

Connect your data path

Choose the free Nightscout path or the hosted B-Sense Cloud option, then connect both xDrip+ and the device to that same endpoint.

Nightscout: use this if you already run your own Nightscout server.
B-Sense Cloud: use this if you want the managed hosted option.
Plans: choose Cloud for hosted setup, or License if you already use your own Nightscout server and only need device access with Pro Features.

Connection summary

Order: get your key or token, configure xDrip+, then save the same path on the device.

Get your API key

  1. Open Plans and review which access option your setup may need.
  2. Open your B-Sense settings page and generate an API key if you do not have one yet.
  3. Keep this key ready, you will use it as the secret in xDrip+.

Connect xDrip+ to your data path

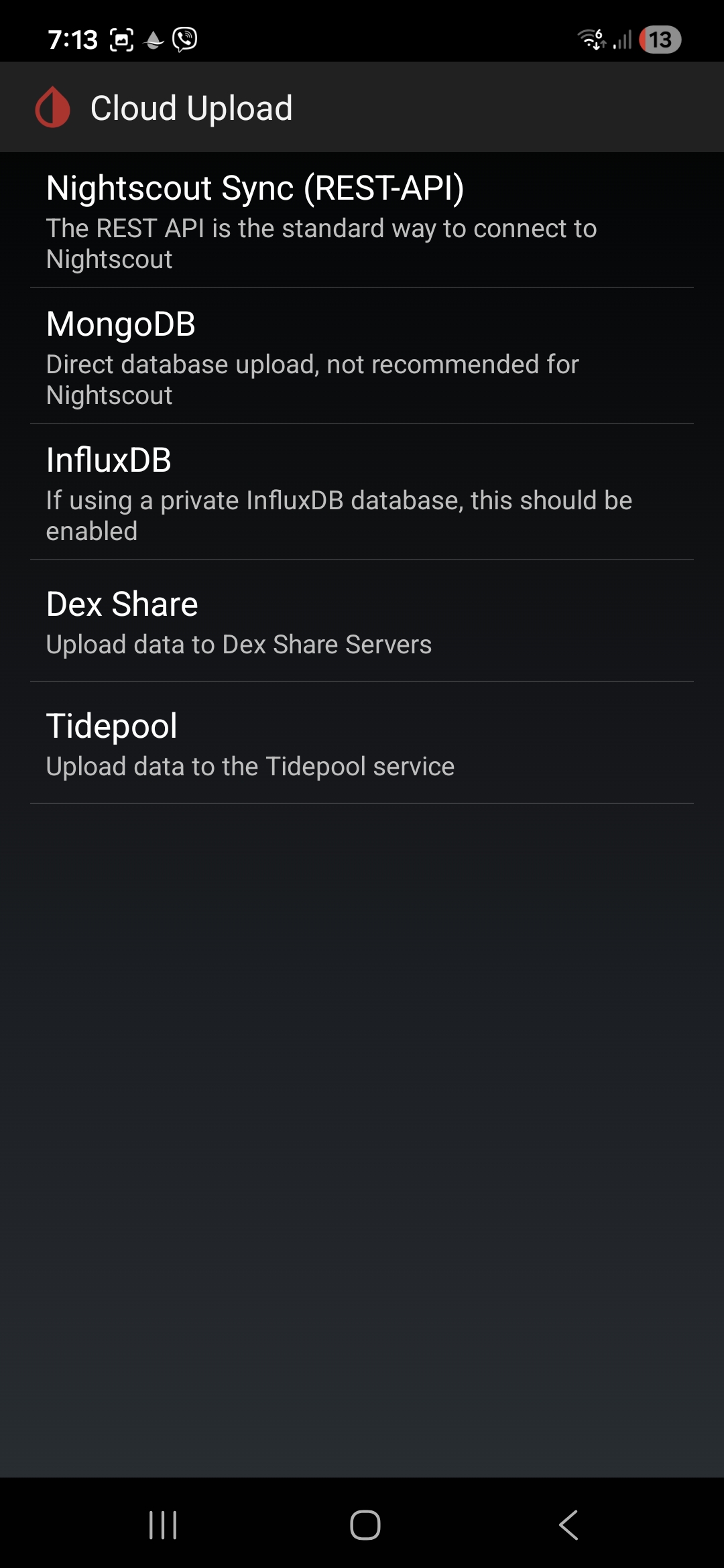

  1. In xDrip+, open Settings -> Cloud Upload -> Nightscout Sync.
  2. Enable Nightscout Sync.

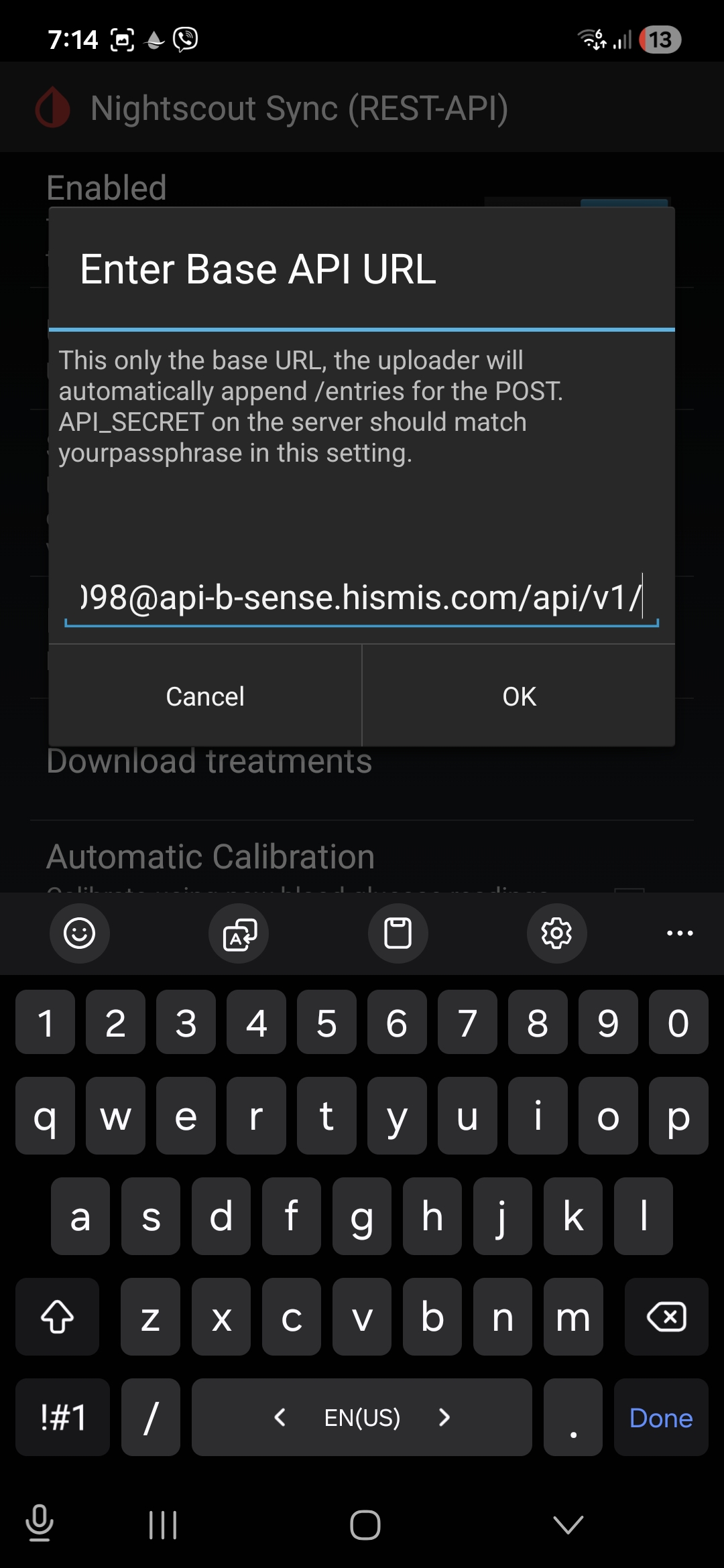

  3. For B-Sense Cloud: in Base API URL, use https://YOUR_BSENSE_API_KEY@api-b-sense.hismis.com/api/v1/.
  4. For self-hosted Nightscout: enter your Nightscout URL and use your Nightscout API_SECRET or a write-capable upload token.
  5. Save and confirm that glucose values start updating in xDrip+.

The xDrip+ screens are the same for both paths. Only the URL and the matching auth value change. Do not use a Nightscout readable token for xDrip+ upload.

Save the same data path on the device

  1. Open Visit Device to reach the local B-Sense setup page.
  2. In Connection -> API settings, choose the correct Plan mode.
  3. If you use B-Sense Cloud or a B-Sense paid plan, choose B-Sense (auto-detect plan), leave the B-Sense server as shown, then paste your B-Sense API key.
  4. If you use your own Nightscout only, choose Free (own Nightscout only), enter your Nightscout server without https://, then enter your Nightscout token (API-SECRET).
  5. Save the device settings, then open Settings and confirm the correct glucose unit and time zone.
  6. Wait for the first reading, then confirm the glucose value, trend arrow, and next refresh all appear normally.

xDrip+ and the device must use the same data path. Do not mix a Nightscout host with a B-Sense key, and do not mix a B-Sense host with a Nightscout token.

xDrip+ connection screenshots

Click any screenshot to open full-size view.

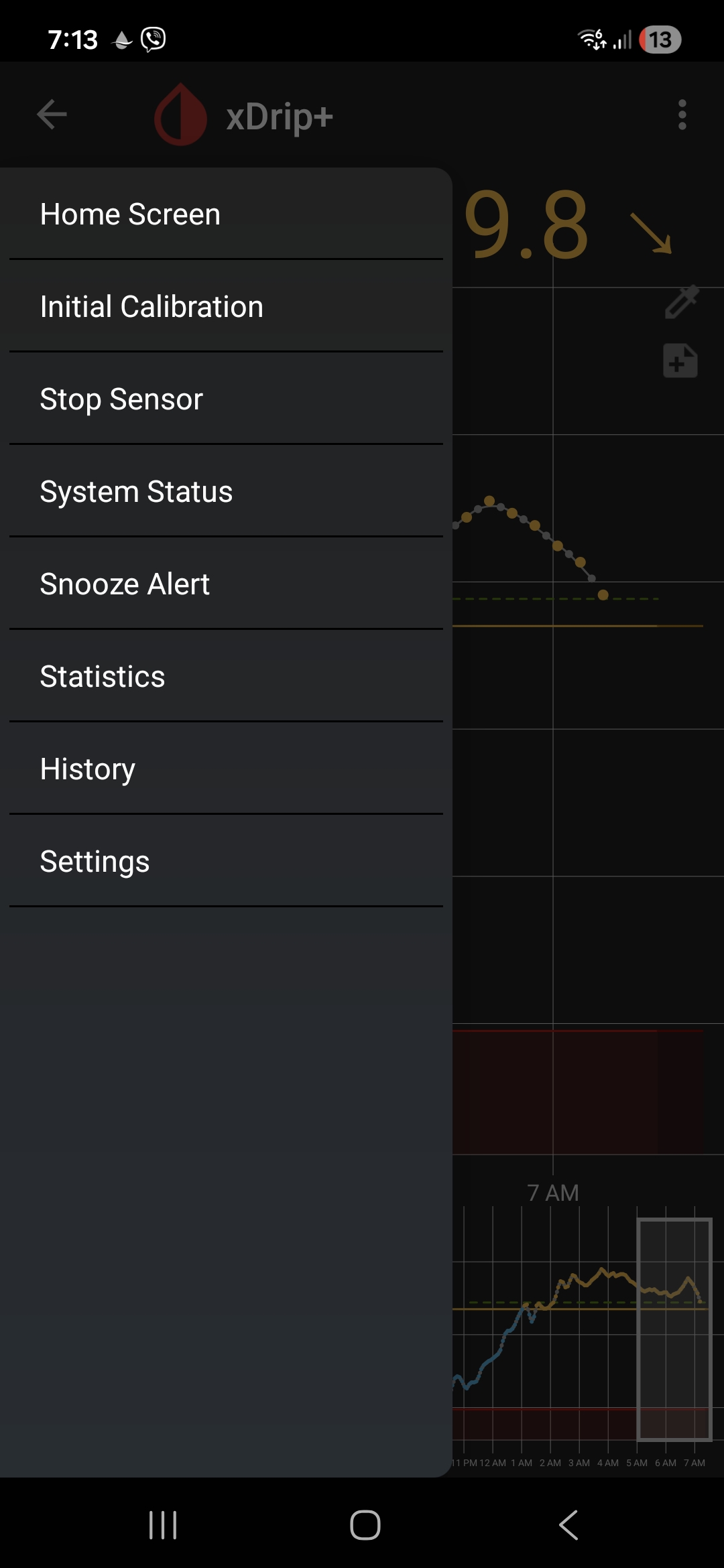

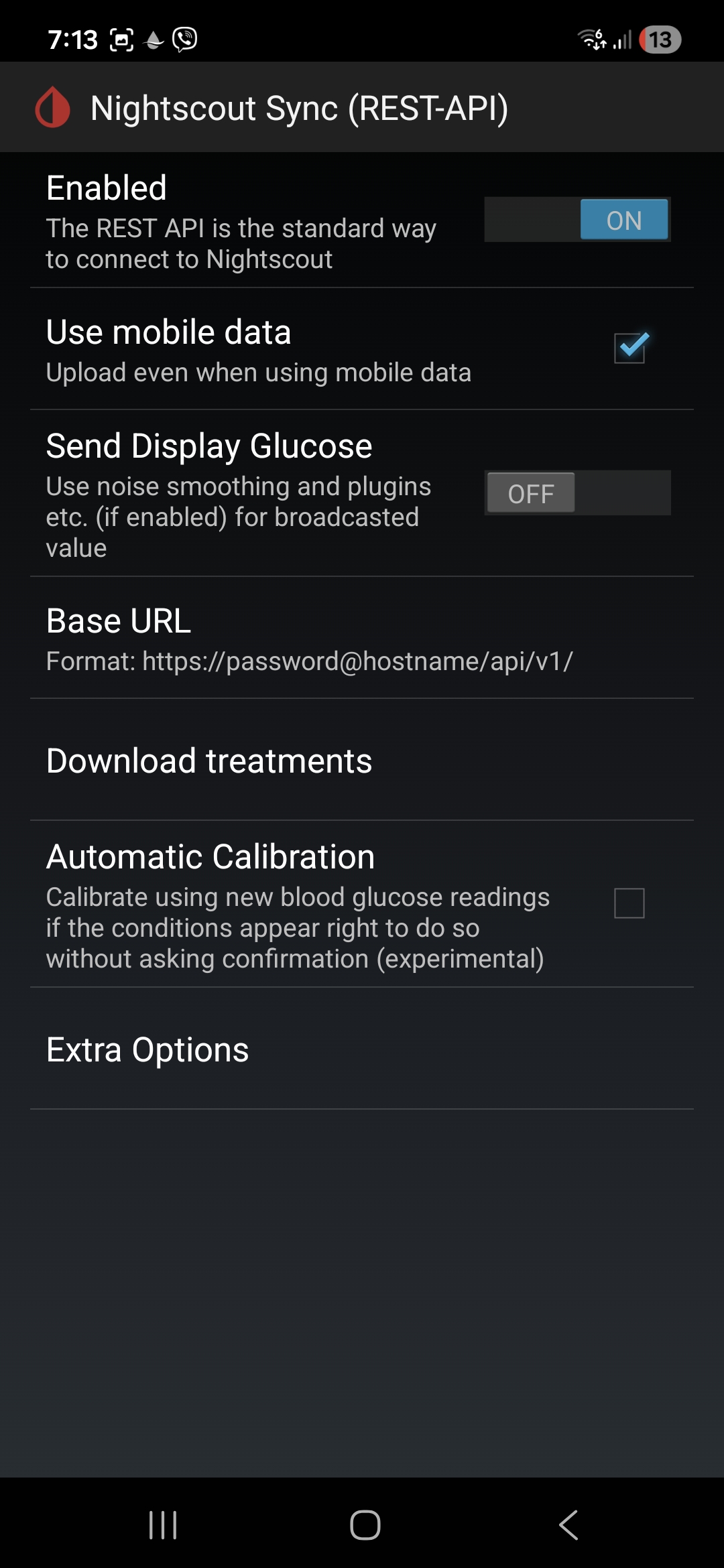

xDrip settings screen for Cloud Upload setup Open xDrip+ Cloud Upload settings xDrip Nightscout Sync toggle enabled Enable Nightscout Sync xDrip server URL field for Nightscout style endpoint Enter server URL

Device setup screenshots

These show where the device-side API settings, unit, and post-save status live.

B-Sense device web UI Connection tab with API settings Open Connection tab and API settings B-Sense device web UI Settings tab with glucose unit and time zone Confirm glucose unit and time zone B-Sense device web UI Status tab after configuration Check status after save

After this step: the first live glucose reading should appear on the device and keep updating.

Review pricing and access options Open account setup

Plans and pricing

Choose Cloud if you want the managed hosted setup. Choose License if you already use your own Nightscout server and want Pro Features on the device. The cards below go directly to the matching checkout.

Cloud

Hosted plan

Choose Cloud if you want B-Sense to handle Nightscout for you and want the lowest-cost plan.

Cloud Quarterly

Best if you want the introductory hosted plan and do not want to manage Nightscout.

Intro offer
€7.49 / 3 Months

First 3 months free

Use code: LAUNCH3M-CLOUD

  • Hosted plan
  • Unlimited devices
  • Pro Features: display layout, thresholds, brightness

Read the Pro Features details

Choose Cloud Quarterly

Cloud Annual

Best if you want the hosted plan without running your own Nightscout server.

Best value
€24.99 / 1 Year
  • Hosted plan
  • No Nightscout server to maintain
  • Unlimited devices
  • Pro Features: display layout, thresholds, brightness
  • Annual billing

Read the Pro Features details

Choose annual
License

Run your own Nightscout

Choose License if you already run Nightscout and want the Pro Features on your device.

License Solo

Use your own Nightscout server and unlock the Pro Features on one device.

Single device
€29.90 one-time
  • Use your own Nightscout server
  • Pro Features: display layout, thresholds, brightness
  • See Pro Features details below
  • One device

Read the Pro Features details

Choose solo

License Family

Use your own Nightscout server and unlock the Pro Features on up to five devices.

Family plan
€39.90 one-time
  • Use your own Nightscout server
  • Pro Features: display layout, thresholds, brightness
  • See Pro Features details below
  • Up to 5 devices

Read the Pro Features details

Choose family
Open account setup

Get updates

Share your CGM + phone combination and choose what you want to hear about. We will email you about the topics you select, including when we add support for your setup.
